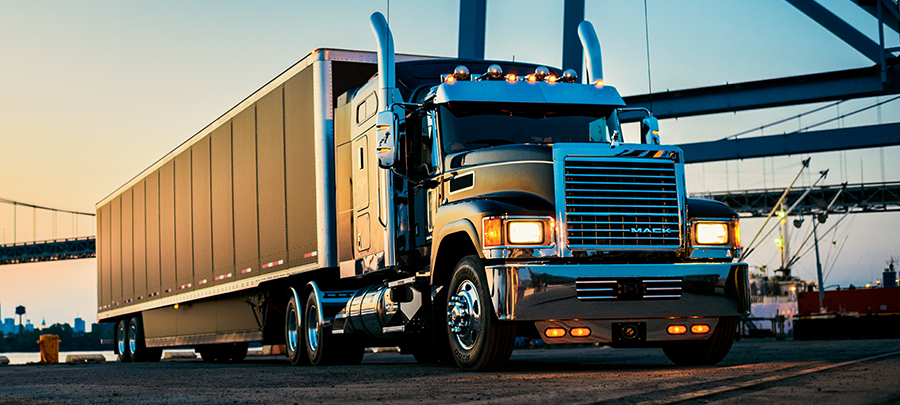

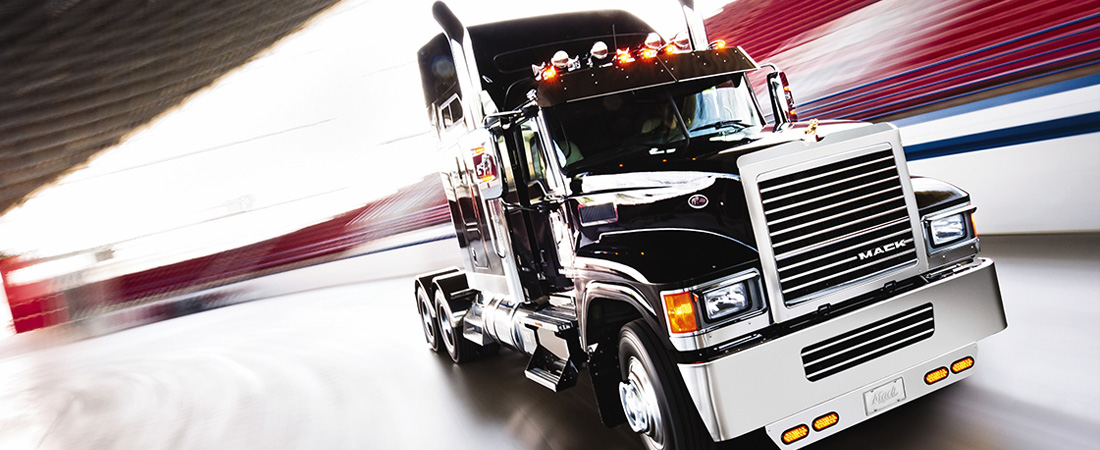

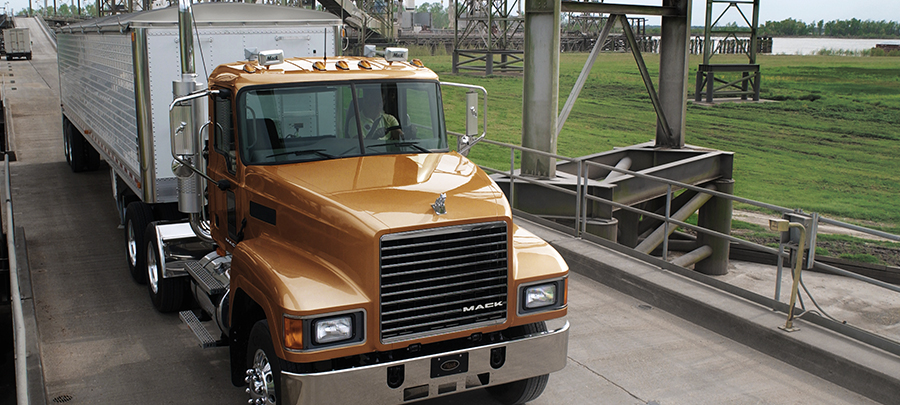

        	| AERODYNAMIC DESIGN The Mack Bulldog® sits low on Pinnacle's sloped hood providing improved aerodynamics on the road and excellent visibility. And the larger radiator opening provides better cooling with less fan engagement. DURABLE HEADLIGHTS The LEXAN® headlight covers are impact resistant and offer easy access for replacing bulbs without a single tool. VERSATILE BUMPER The durable bumper is designed with dual tow clevises, and is also equipped with fog lights for better visibility in inclement weather. SPLASH SHIELDS Hood splash shields keep the engine compartment clean extending component life, and they lift with the hood to create more room for vehicle maintenance and service. DURABLE HOOD Hood isolators allow the hood to flex independently from the cab for increased durability over rough terrain. GALVANIZED STEEL CAB Pinnacle's durable galvanized steel cab is mounted on airbags and shocks and stabilized with sway bars, so while the truck soaks up the rough stuff, the driver stays comfortable, rested and productive. RUBBER-SEALED WINDSHIELD A two-piece windshield is isolated in a rubber seal, which puts less stress on the windshield and makes it easier to replace at less cost. COLLAPSIBLE MIRRORS Collapsible mirrors fold to eliminate door sheet metal damage in tight jobsite conditions. Heated, lighted and motorized mirrors are available |  | EASY CAB ENTRY Sculpted self-cleaning steps and a full-size externally-mounted grab bar provide an extra measure of safety getting in and out of the cab. UNDER CAB MOUNTED COMPONENTS The air tanks and battery box are neatly mounted under the cab, and a full selection of aluminum or steel fuel tanks are available to fit your needs. When Pinnacle™ is outfitted with fuel-tank fairings, all components are not only protected, but the side fairings work with the bumper to keep air flowing smoothly along the length of the tractor to boost fuel economy. "D" SHAPED FUEL TANK Pinnacle is available with this unique tank design that holds more fuel in the same space. CAB AIR SPRINGS Drivers can work more comfortably thanks to large, outboard-mounted air springs that provide cushioning, stability and reduced vibration. HOOD SAFETY LATCH The hood safety latch engages automatically and keeps the hood up, even in the windiest conditions. Disengage the latch by simply flipping it up before closing the hood. LARGE PEEP WINDOW The large peep window and visibility door provide exceptional views, and the quick release mechanism allows easy access for cleaning. SUN VISOR Stainless steel or painted sun visors are available. AIR INTAKES Pinnacle features optional bright finish air intake vents. |




        	Engine
             TRANSMISSIONS
             AIR/BRAKE
             ELECTRICAL
             INTERIOR/EXTERIOR
             FRONT AXLE
             REAR AXLE


                ENGINE: MACK® MP7 OR MP8*
                    Horsepower And TorqueMP8 – 13 Liter With 415 To 505 HP And Torque Ratings From 1,540 To 1,760 ft.-lbs.
 MP7 – 11 Liter With 325 To 405 HP And Torque Ratings From 1,200 To 1,560 ft.-lbs.
Mack PowerLeash™ Engine Brake – (MP7 – 420 HP At 2,100 RPM / MP8 – 425 HP At 2,100 RPM)REPTO (Rear Engine Power Takeoff) – SAE 1350V-MAC® IV – Total Vehicle ElectronicsAir Compressor – Meritor/Wabco 18.7 cfm.Mack Coolant ConditionerClearTech™ SCR – Available Horizontal or Back-Of-CabDiesel Particulate Filter – Mack Cap (Passenger Side Under Step)Single Or Dual Vertical ExhaustSilicone Engine Hoses And TubingPoly-V Fan Belt With Automatic TensionerFan Drive, Electronically Modulated Multi-Speed Viscous / On-Off Flywheel Housing – Aluminum (Lightweight)Radiator – Aluminum CoreElectronic Starter Interlock * Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.

            	TRANSMISSIONS*
                    Clutch – Self And Manual Adjusting Mechanical Cable – Standard Air Operated Clutch Assist Pedal – OptionalTransmission Bell Housing – Aluminum Or IronPTO (Power Takeoff) Up To Six Openings, SAE 6 + 8Transmissions**

                        | Mack TM308 Maxitorque® ES Shift Triple-Counter Shaft | 8 Speed | 17.77 / 0.71 Ratio (Low/High) |
                        | Mack TM308M Maxitorque ES Shift Triple-Counter Shaft | 8 Speed | 17.77 / 0.71 Ratio (Low/High) |
                        | Mack TM309 Maxitorque ES Shift Triple-Counter Shaft | 9 Speed | 25.21 / 0.71 Ratio (Low/High) |
                        | Mack TM309M Maxitorque ES Shift Triple-Counter Shaft | 9 Speed | 25.21 / 0.71 Ratio (Low/High) |
                        | Mack T309 Maxitorque ES Shift Triple-Counter Shaft | 9 Speed | 11.40 / 0.71 Ratio (Low/High) |
                        | Mack T309(LR) Maxitorque ES Shift Triple-Counter Shaft | 9 Speed | 13.93 / 0.71 Ratio (Low/High) |
                        | Mack T310 Maxitorque ES Shift Triple-Counter Shaft | 10 Speed | 13.81 / 0.73 Ratio (Low/High) |
                        | Mack T310M Maxitorque ES Shift Triple-Counter Shaft | 10 Speed | 17.35 / 0.73 Ratio (Low/High) |
                        | Mack T310ME Maxitorque ES Shift Triple-Counter Shaft | 10 Speed | 17.35 / 0.73 Ratio (Low/High) |
                        | Mack T310MLR Maxitorque ES Shift Triple-Counter Shaft | 10 Speed | 27.31 / 0.71 Ratio (Low/High) |
                        | Mack T313 Maxitorque ES Shift Triple-Counter Shaft | 13 Speed | 13.44 / 0.74 Ratio (Low/High) |
                        | Mack T313LR Maxitorque ES Shift Triple-Counter Shaft | 13 Speed | 16.42 / 0.71 Ratio (Low/High) |
                        | Mack T318 Maxitorque ES Shift Triple-Counter Shaft | 18 Speed | 13.44 / 0.71 Ratio (Low/High) |
                        | Mack T318LR Maxitorque ES Shift Triple-Counter Shaft | 18 Speed | 16.42 / 0.71 Ratio (Low/High) |
                        | Mack mDRIVE™ Automated MT-Premium (Overdrive) | 12 Speed | 11.73 / 0.79 Ratio (Low/High) |
                        | Mack mDRIVE Automated MT-Fleet (Direct Drive) | 12 Speed | 14.94 / 1.00 Ratio (Low/High) |
                        | Allison® – EVS Or RDS | 5 Speed | 3.51 / 0.74 Ratio (Low/High) |
                        | Allison – EVS Or RDS | 6 Speed | 3.51 / 0.74 Ratio (Low/High) |
                        | Eaton® Fuller® Roadranger® Twin Counter Shaft | 9 Speed | 12.57 / 0.73 Ratio (Low/High) |
                        | Eaton Fuller Roadranger Twin Counter Shaft | 10 Speed | 12.69 / 0.74 Ratio (Low/High) |
                        | Eaton Fuller Roadranger Twin Counter Shaft | 11 Speed | 26.08 / 0.73 Ratio (Low/High) |
                        | Eaton Fuller Roadranger Twin Counter Shaft | 13 Speed | 12.31 / 0.73 Ratio (Low/High) |
                        | Eaton Fuller Roadranger Twin Counter Shaft | 15 Speed | 13.31 / 0.79 Ratio (Low/High) |
                        | Eaton Fuller Roadranger Twin Counter Shaft | 18 Speed | 14.40 / 0.73 Ratio (Low/High) |  * Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab. ** Other Supplier Transmissions Available

            	AIR / BRAKE*
                    Dual Air Brake SystemAnti-Lock Brake System With Or Without Traction ControlMack Road Stability Advantage™ System * Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.

            	ELECTRICAL*
                    12-Volt Electrical SystemBattery Box – Steel With Molded Plastic Cover Mounted LH RailCourtesy Light Switch – Headlamp And ClearanceDaytime Running LightsElectric Circuit Protection PackageWaterproof Electrical ConnectionsHeadlights – Halogen Flush With Replaceable BulbsStep-Mounted LED Work Lights (optional) * Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.

            	CAB INTERIOR / EXTERIOR SPECIFICATIONS*

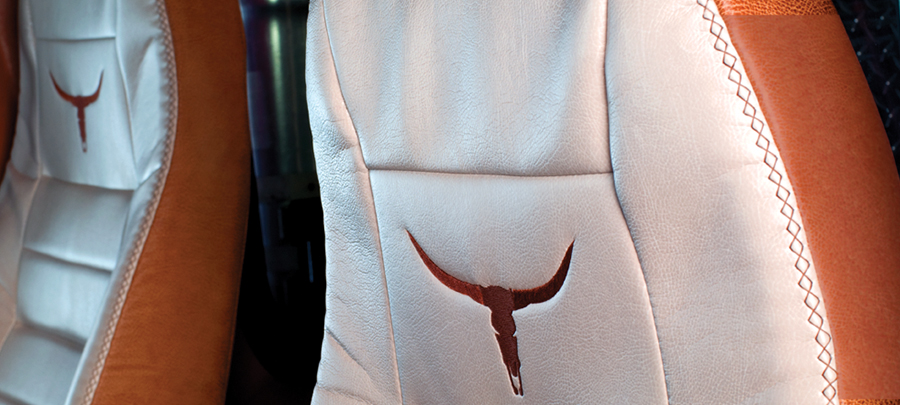

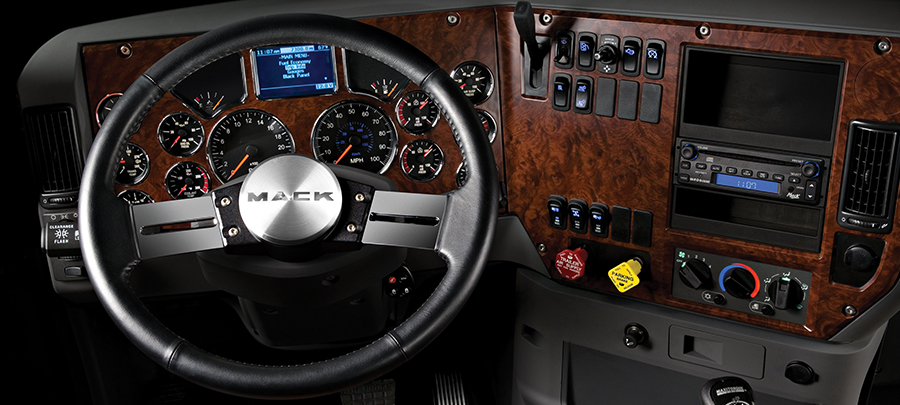

                    Air Conditioner With Integral Heater And Replaceable FilterAir Cleaner With Restriction MonitorCab Mounting – Four-Point System With Two Air Bags And Canted ShocksInterior Lighting, 2 Lamps LH / 2 Lamps RHGalvanized Steel Visibility Doors With Passenger Peep WindowKeyless EntryFloor Mats – Polyurethane Mack Signature PawprintGrille – Silver Painted Or Bright Finish With Or Without Grille SurroundHood And Fenders – Fiberglass, CamoplastFuel Tanks – "D" Shaped 22" and 26"Identification And Clearance Lights (5)Co-Pilot™ Driver DisplayInstrument Panel – Brushed Nickel, Woodgrain Or CharcoalExterior Mirrors – Bulldog® Stylized Or Aerodynamic Mirrors Available Lighted / Heated / MotorizedParking Brake On Indicator LightOverhead Console, 3 Storage Compartments With Net Retainers12-Volt Auxiliary Power Outlets (2) – Dash MountedAM/FM Stereo CD With Weather Band – Premium Radio Package AvailableDriverSeat – Bostrom Talladega® 915 Mid-Back Air SuspensionRider Seat – Mack Fixed Mid-Back Non-SuspensionSteering Column – Adjustable Tilt And TelescopicRear Storage PouchInterior Sun Visor – Full WidthWindshield – Safety Tinted 2-PieceSafety Tinted Side And Rear WindowsIntermittent Windshield WipersPaint – Custom Color Available For Cab, Chassis And Wheels * Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.

           		FRONT AXLE (in Axle Back & Axle Forward options), AND SUSPENSION CHASSIS DIMENSIONS* FRONT AXLE IN AXLE BACK OPTION:
                	Front Axle – Mack UniMax™ Axles With Integrated Hub
                  		12,000, 12,500, 13,200 and 14,600 lb. Capacity
Hub Material – Ferrous Or AluminumBrakes
                        Drum:  Bendix® 16.5" X 5" Cast Spider, Outboard Mounted
 Air:  Bendix ADB22X Air Disc Brake
Slack Adjusters – Haldex® AutomaticSuspension
                    	Spring: Mack Taperleaf
 Air: Hendrickson® AirTek
Power Steering – Sheppard® or TRW® 12,000 – 14,600Wheels – Alcoa Machine Clean Buff Aluminum Disc 22.5 X 8.25 w/ 10-Hole Hub Material Piloted FRONT AXLE IN AXLE FORWARD OPTION:
                	Mack UniMax™ Axles with Integrated Hub Material
                    	12,000, 14,600 lb. Capacity
Hub Material – Ferrous Or AluminumBrakes
                    	Drum:  Bendix® 16.5" X 5" Cast Spider, Outboard Mounted
 Air:  Bendix ADB22X Air Disc Brake
Slack Adjusters – Haldex® AutomaticSuspension
                    	Spring: Mack Taperleaf
 Air: Hendrickson® AirTek
Power Steering – Sheppard® or TRW® 12,000 – 14,600Wheels – Alcoa Machine Clean Buff Aluminum Disc 22.5 X 8.25 w/ 10-Hole Hub Material Piloted * Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab.

            	REAR AXLE (in Axle Back & Axle Forward options), AND SUSPENSION CHASSIS DIMENSIONS* REAR AXLE IN AXLE BACK OPTION:
                	Rear Axle
                    	Single – 23,000 lb. Capacity
 Tandem – 38,000, 40,000, 44,000, 46,000 lb. Capacity
 Tri-Drive – 45,000, 48,000, 50,000, 52,000, 55,000 lb. Capacity
Carrier – Meritor® MT40, Iron, Single Reduction, Front-Mounted with Power Divider LockoutHub Material – Ferrous Or AluminumBrakes
                    	Drum: Bendix 16.5" X 7" Stamped Spider, Outboard Mounted
 Air: Bendix ADB22X Air Disc
Slack Adjusters – Haldex AutomaticSuspension
                    	Spring: Mack Multileaf (Camelback)
 Air: Mack Twin Y™,  MaxLite™
Wheels – Alcoa Machine Clean Buff Aluminum Disc 22.5 X 8.25 w/ 10-Hole Hub Material Piloted REAR AXLE IN AXLE FORWARD OPTION:
                	Rear Axle
                    	Single – 23,000 lb. Capacity
 Tandem – 38,000, 40,000, 44,000, 46,000 lb. Capacity
 Tri-Drive – 45,000, 48,000, 50,000, 52,000, 55,000 lb. Capacity
Carrier – Meritor® MT40, Iron, Single Reduction, Front-Mounted with Power Divider LockoutHub Material – Ferrous Or AluminumBrakes
                    	Drum: Bendix 16.5" X 7" Stamped Spider, Outboard Mounted
 Air: Bendix ADB22X Air Disc
Slack Adjusters – Haldex AutomaticSuspension
                    	Spring: Mack Multileaf (Camelback), and mRIDE
 Air: Mack Twin Y™,  MaxLite™
Wheels – Alcoa Machine Clean Buff Aluminum Disc 22.5 X 8.25 w/ 10-Hole Hub Material Piloted *  Specifications shown are applicable to North American product only. For specifics on Export products, please refer to the Mack Worldwide tab. |
